| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Elite Machinery |
| Max. Length of Black | 1551 mm |
| Max. Travel of Boring Bar | 325 mm |
| Click to view more | |
Product Details
Additional Travel with Extension Bar (extra Equipment)
260-325 mm
Drive motor (440 V, 3-ph, 50Hz)
1.5 hp
Width of bed
570 mm
Work Space Required
5050 x 1760 mm
Net weight (approx.)
1700
Gross weight
2200
Technical data
| MODEL | EMT 2500 | EMT 1500 |
| Maximum Length of Block | 2500 MM (98.5'') | 1500 MM (59'') |
| Max.Distance Between Top of Bed To Boring Bar Center | 850 MM (33.5'') | 750 MM (29 1/2'') |
| Min.Distance Between Top of Bed and Boring Bar Center | 550 MM (215'') | 450 MM (17 3/4'') |
| Boring Capacity With Standard Equipments | 32 MM - 175 MM (1.25'' - 7'') | 32 MM - 140 MM (1 1/4 - 5.5'') |
| Boring Capacity With Optional Equipments | 24 MM - 225 MM (1''- 8.9'') | 24 MM - 225 MM (1'' - 8 3/4'') |
| Spindle Speed Infinitely Variable | 80 - 700 RPM | 80 - 700 RPM |
| Feed Both Directions Infinitely Variable | 0-50 MM / MIN. | 0 - 50 MM / MIN. |
| Max.Travel of Boring Bar | 450 MM (17 3/4'') | 450 MM (17 3/4'') |
| Drive Motor (A.C) | 1.5 KW / 2 HP | 1.5 KW / 2 HP. |
| Spindle Feed Motor (D.C) | 0.18 KW / 0.25 HP | 0.18 KW / 0.25 HP |
| Length of Machine | 4840 MM (190'') | 3840 MM (151'') |
| Width of the Machine | 750 MM (29 1/2'') | 750 MM (29.5'') |
| Height of Machine | 1850 MM (73'') | 1750 MM (69'') |
| Work Space Required (LxWxH) | 6000 MM X 1750 MM X 2000 MM | 5000 MM X 1750 MM X 1900 MM |
| (236'' X 69'' X 78.7'') | (197'' X 69'' X 75'') | |
| Net Weight (Approx) | 2250 KGS. | 1750 KG |
| Gross Weight (Approx) | 2750 KGS. | 2250 KGS |
| Shipping Volume | 2750 KGS. | 6 M3 |
| Packing Case Outer Size (LxWxH) | 5100 MM X 1000 MM X 1595 MM | 4100 MM X 1000 MM X 1495 MM |
| (200'' X 40'' X 62'') | (161'' X 40'' X 58.8'') |

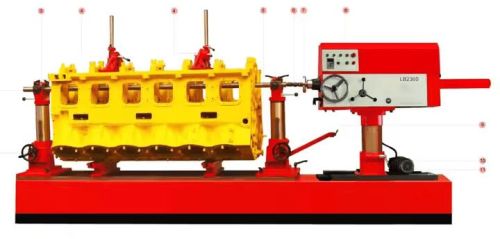

Looking for "Horizontal Line Boring Machine" ?
