| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Crankshaft Grinder |
| Brand Name | ELITE Machine |
| Click to view more | |
Product Details
Length of Nail in inch & mm
½ -1.1/2 12-38
Wire Size S.W.G
16-20
Production P.M
350-400
Space Required in inch & mm
30*30*29, 750*750*725
Motor H.P & R.P.M
2*1440
Approx weight
350
Technical Specification
| Size in inches | 48” | 60” | 72” | 84” | 90” | 104’’ | 120’’ |
| Max. distance between centres | 1200mm | 1500mm | 1800mm | 2100mm | 2250mm | 2600mm | 3000mm |
| Max. distance between chucks | 1100mm | 1400mm | 1700mm | 2000mm | 2150mm | 2500mm | 2900mm |
| Max. weight of crankshaft | 60kg | 80kg | 100kg | 125kg | 150kg | 200kg | 300kg |
| Swing over table | 400mm | 500mm | 500mm | 650mm | 650mm | 650mm | 650mm |
| Max. stroke | 175mm | 225mm | 225mm | 280mm | 280mm | 280mm | 280mm |
| Work head spindle speeds | 27-41-61rpm | 27-41-61rpm | 27-41-61rpm | 27-41-61rpm | 27-41-61rpm | 18-27-41rpm | 18-27-41rpm |
| Grinding wheel speed | 950rpm | 950rpm | 950rpm | 750rpm | 750rpm | 750 mm | 725rpm |
| Grinding space reqd | 4500x2500mm | 5400x2800mm | 6000x2800mm | 6500x3250mm | 7150x3250mm | 7500x3250mm | 9000x2400mm |
| Net/Gross weight | 3000/3800kg | 4000/5000 kg | 4200/5200kg | 5000/6300kg | 5100/6500kg | 5500/7000kg | 7000/8500kg |

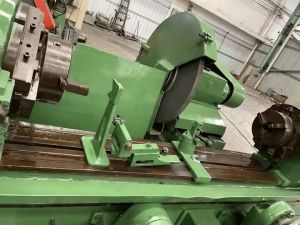

Looking for "Mechanical Crankshaft Grinding Machine" ?
