| Business Type | Manufacturer, Exporter, Supplier |
| Material | Alloy Steel |
| Driven Type | Electric |
| Surface Finishing | Polished |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Automation Grade
Automatic
Application
Industrial Use
Type

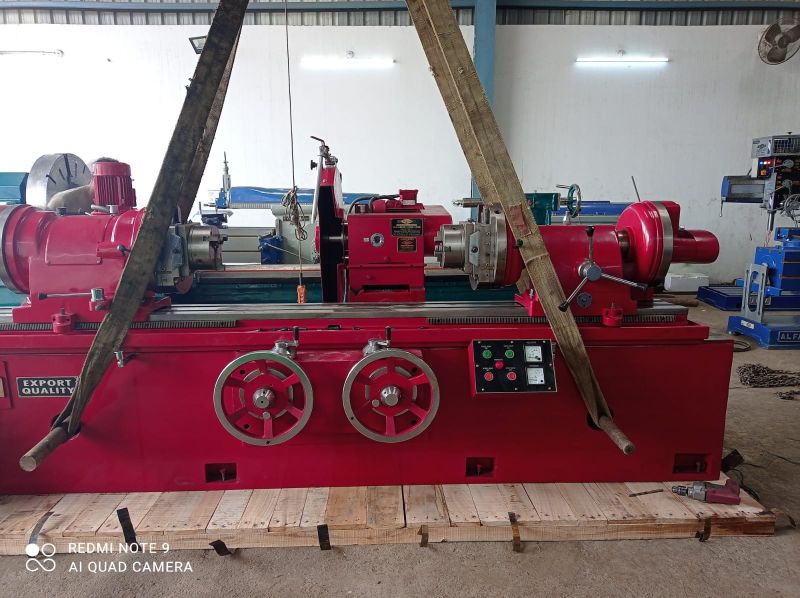

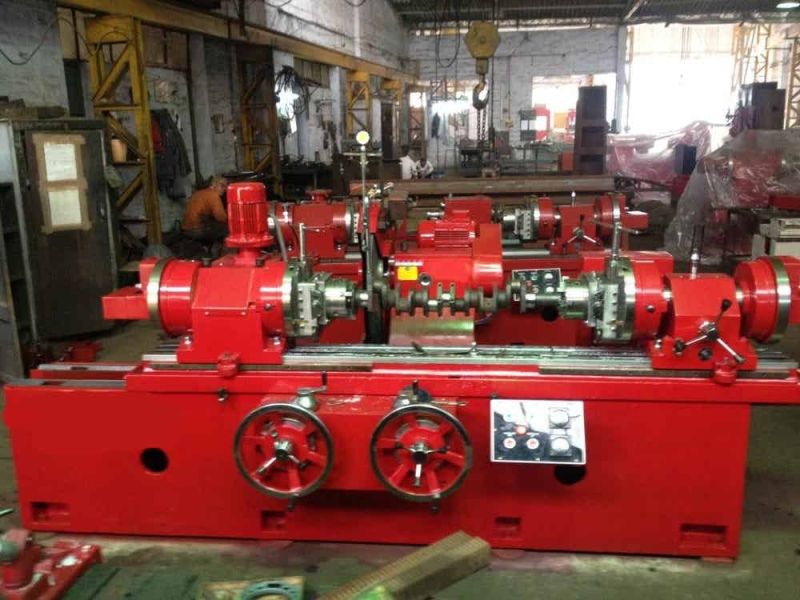

Crankshaft Grinder
Frequency
50 Hz, 60 Hz
Phase
Single Phase, Three Phase
Country of Origin
India
Brand Name
ELITE Machine
Technical Specification
| TECHNICAL SPECIFICATIONS | 2750 | 2200 | 1500 |
| Height of centre from the table | 350 mm – (13.8″) | 300 mm | 265 mm |
| Maximum swing over table | 700 mm – (27.5″) | 600 mm | 530 mm |
| Maximum head offset | 140 mm – (5.5″) | 140 mm | 100 mm |
| Maximum distance between chuck | 2725 mm | 2150 mm | 1450 mm |
| Maximum distance between centers | 2800 mm | 2200 mm | 1500 mm |
| Maximum weight admitted between chuck | 1250 kgs | 500 kgs | 250 kgs |

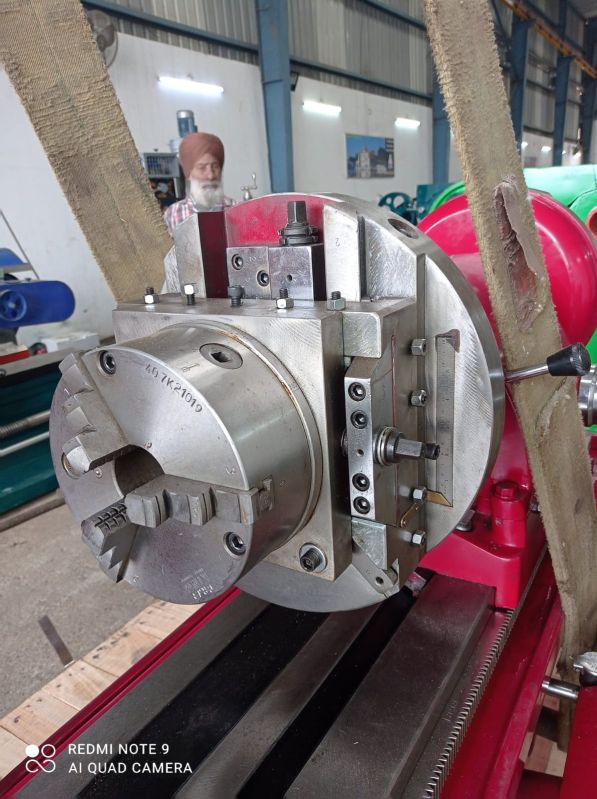

| Diameter of self centering chucks | 250 mm – (10″) | 250 mm | 200 mm |
| Diameter of grinding wheel | 813 mm – (32″) | 813 mm | 710 mm |
| Grinding head feed per turn of handle wheel | 1 mm | 1 mm | 1 mm |
| Fast grinding head feed with control | 350 mm | 175 mm | 150 mm |
| Micrometeric grind head feed | —– | 175 mm | 150 mm |
| Work head spindle rotation speed (variable) | 25 – 100 rpm | 19 – 90 rpm | 25 -100 rpm |
| Table slow feed per turn of hand wheel | 5 mm | 5.4 mm | 5.4 mm |
| Table fast feed per turn of hand wheel | 3000 mm / min. | 15.2 mm | 15.2 mm |
| Automatic table movement | —– | 1 set | optional |
| Grinding wheel spindle | 760 rpm. | 760 rpm | 900 rpm |
| Grinding wheel motor | 7.5 hp / 5.5 kw/ 1440 rpm | 5.5kw / 7.5 hp/ 1440 rpm | 3.7 kw / 5 hp/ 1440 rpm |
| Work head motor | 1 HP / 0.75 kw/ 1440 rpm | 0.37kw / 0.5 hp/ 1440 rpm | 0.37 kw / 0.5 hp/ 1440 rpm |
| Coolant pump motor | 0.13 hp/ 2800 rpm | 0.13 hp/ 2800 rpm | 0.13 hp / 2800 rpm |
| Servo control motor (grinding wheel slide) | 0.4 kw | 0.4 kw | 0.4 kv |
| Length of the machine | 5400 mm | 4500 mm | 3500 mm |
| Width of the machine | 2250 mm | 1750 mm | 1750 mm |
| Height of the machine | 1650 mm | 1650 mm | 1550 mm |
| Work space required | 7000 X 2000 mm | 5100 X 1900 mm | 5500 X 2000 mm |
| Work height required | 1650 mm | 1650 mm | 1550 mm |
| Net weight | 5 ton | 4 ton | 3.25 ton |
| Gross weight | 6.5 ton | 4.5 ton | 4 ton |
| Shipping volume | 17 m3 | 17 m3 | 15 m3 |
