Gt Road, Batala, Punjab
- GST NO. : 03AAJFE6546N1Z3
Power Press Machines

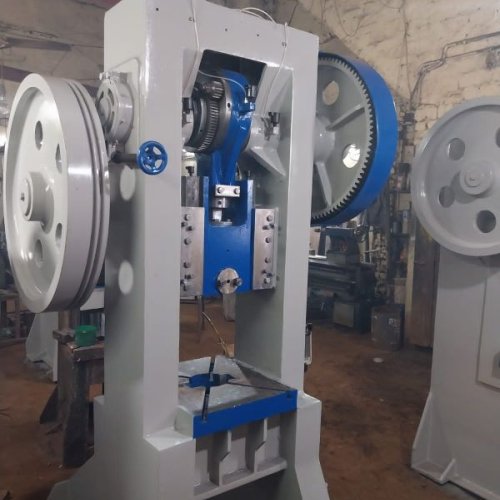

Leading Manufacturers, Exporters and Wholesaler of C Type Power Press Machine, H - Frame Pillar Type Power Press Machine, Mechanical Power Press Machine and Power Operated Hydraulic Press Machine from Batala.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | ELITE Machine |
| Crankshaft Diameter | 70 mm |
| Adjustment of Stroke | 38 mm |
| Adjustment of Ram | 25 mm |
| Punch Hole in Ram | 25 mm |
| Hole in Bed | 63 mm |
| Bed Size (Length x Width) | 355x178 mm |
| Bed Thickness | 50 mm |
| Dist.between bed to Ram | 177 mm |
| Flywheel Dia. | 406 mm |
| Strokes per minute | 80 mm |
| For Geared (1440 RPM) | 1 mm |
| For Ungeared(960 RPM) | 1 mm |
| Floor To Top of Bed | 700 mm |
| ‘Weight Approximate | 350 kg |
| Allover Size LRxFBxH | 700x600x1600 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | ELITE Machine |
| Dia of Crank Shaft | 100 mm |
| Adjustability of Stroke | 76 mm |
| Punch Bore in Ram | 31 mm |
| Width of Bed | 450 mm |
| Length of Bed | 450 mm |
| Gear Dia | 600 mm |
| Fly Wheel Dia | 700 mm |
| Gap (Bed to Bottom) | 350 mm |
| Stroke per Minute | 60 mm |
| H.P. Required (1440) | 3 mm |
| Bore in Bed | 140 mm |
| Weight in Kgs (Apprx) | 1550 mm |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | ELITE Machine |
| Crankshaft Diameter | 140 mm |
| Adjustment of Stroke | 89 mm |
| Adjustment of Ram | 25 mm |
| Punch Hole in Ram | 45 mm |
| Hole in Bed | 101 mm |
| Bed Size (Length x Width) | 685x406 mm |
| Bed Thickness | 83 mm |
| Dist.between bed to Ram | 350 mm |
| Flywheel Dia. | 660 mm |
| Strokes per minute | 35 mm |
| For Geared (1440 RPM) | 5 mm |
| Floor To Top of Bed | 1000 mm |
| ‘Weight Approximate | 2500 kg |
| Allover Size LRxFBxH | 1200x1600x2500 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | ELITE Machine |
| Application | Industrial |
| Between Column Length x Width | 1200 x 600 mm |
| Between Ram to bed Min. Max. mm. mm. | 180 x 975 |
| Travel Of Ram | 225 |
| Motor Power H.P. | 7.5 |
| Capacity | 100 Ton |
Preferred Buyer From
| Location | Worldwide |
