Grinding Machines

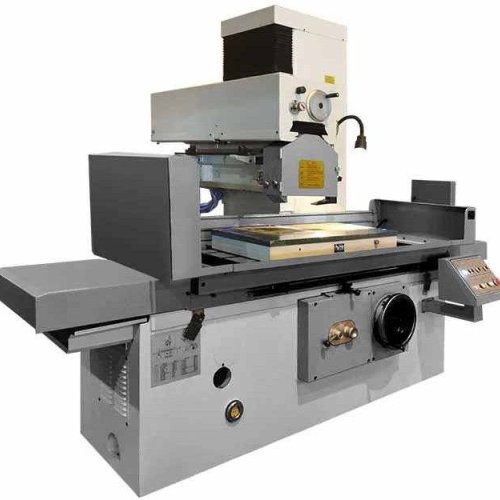

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Automatic Wire Nail Making Machine, Hydraulic Surface Grinding Machine, Pedestal and Bench Grinder Machine and Tool Cutter Grinder Machine from Batala.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Elite Machinery |
| Color | Green |
| Condition | New |
| Automatic Grade | Automatic |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Hydraulic |
| Brand Name | ELITE Machine |
| Table Size | 150x450mm. (6 |
| Max. Grinding Length | 475mm (19 |
| Max. grinding Width | 160m (6 1/4) |
| Max. Distance from Table Surface to Spindle Centerline | 250mm (10 |
| Standard Magnetic Chuck Size | 160x350mm (6 |
| Hydraulic motor | 1HP X 6P |
| Longitidinal Feed Motor | 1HP X 6P |
| Packing Dimesnsions | 1270 x 920 x 1820 mm (50 |
| Business Type | Manufacturer, Exporter, Supplier |
| Condition | New |
| Specialities | Excellent Functionality, Less Maintenance |
| Wheel Size | 6 |
| Motor Rating H.P. | 5 |
| N.N.R.P.M | 2880 |
| Business Type | Manufacturer, Exporter, Supplier |
| Automation Grade | Automatic |
| Application | Industrial |
| Swing Over Table | 230 mm |
| Maximum Distance Between Centers | 305 mm |
| Table Longitudinal Traverse | 305 mm |
| Table Cross Traverse | 200 mm |
| Table Dimensions | 530x142 mm |
| Tee Slots Width | 10 mm |
| Centre of Wheel Above Table | 280 mm |
| Table Swivel | 90 degree |
| Head Swivel | 360 degree |
| Grinding Spindle Speed | 2800 rpm |
| H.P. of Motor | 1 H.P. |
| Floor Area Occupied | 900x750 mm |
| Height of The Machine | 1500 mm |
| Weight of The Machine With Standard Accessories | 500 kg |
