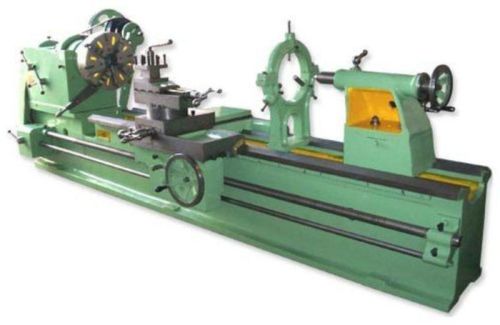

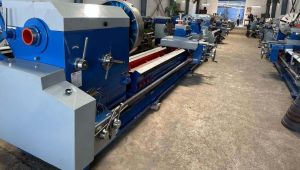

Extra Heavy Duty Lathe Machine
Extra Heavy Duty Lathe Machine
image 1

Extra Heavy Duty Lathe Machine

Link Copied
Edit
Get Best Price
Business Type Manufacturer, Exporter, Supplier
Material Cast Iron
Driven Type Hydraulic
Automation Grade Automatic
Click to view more
Request to Call Send Enquiry

Product Details

Usage
Turning, Sanding, Knurling, Facing
Country of Origin
220V
Machine Weight
100-1000 Kg
Brand Name
ELITE Machine
Length of Bed
 4½ 1370 5 1525 7 2135 10¼ 3150 8¼ 2515 12¼ 3735 8¼ 2515 12½ 3710 16’1″ 4905
  6 1825 6½ 1980 8¾ 2665 12 3660 10¾ 3125 16¾ 4955 10’2″ 3100 12½ 3710 20’5″ 6225
Diamensions inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm
Width of Bed 11 280 13 330 15 380 15 380 18 460 18 460 21 535 21 535 21 535
Centre of Bed 9 230 10½ 265 12 305 12 305 16 405 16 405 18 460 18 460 20 510
Spindle Bore 1¾ 45 2 50 2⅝ 65 2⅝ 65 3⅜ 85 3⅜ 85 4¼ 105 4⅛ 105 4⅛ 105
Admit between Centre 22 560 22 550 40 1000 80 2000 47 1200 95 2400 38 965 85 2150 132 3350
  34 865 40 1000 60 1500 100 2500 71 1800 143 3625 60 1500 85 2150 184 4675
Swing over Bed 18 460 21 535 24 610 24 600 32 815 32 815 36 915 36 915 40 1000
Swing over Cross 10 255 12 305 14½ 370 14½ 370 20 510 20 500 24 610 24 600 26 660
Gap Distance 7 180 8 205 8½ 215 8½ 215 13½ 345 13½ 345 19 485 19 485 19 485
Gap Depth from Centre 11½ 290 14 355 18 460 18 460 23 585 23 585 27 685 27 685 29 735
Swing in Gap 23 585 28 710 36 915 36 915 46 1170 46 1170 54 1370 54 1370 58 1475
Dia of Lead Screw 1½ 38 1½ 38 1¾ 45 1¾ 45 2 50 2 50 2½ 60 2¼ 60 2½ 65
H.P. Required 1 1 2 2 3 3 3 3 5 5 5 5 5 5 5 5 7.5 7.5

Yes! I am interested


Technical Specification

 Length of Bed  12”  16”  20”  24”
 Width of Bed  26”  26”  28”  28”
 Height of center  24”  24”  25”  26”
 Swing over Bed dia.  47”  47”  51”  51”
 Swing in Gap dia.  72”  72”  76”  76”
 Width of gap intent of face plate  14”  14”  15”  16”
 Swing over saddle dia.  37”  37”  41”  41”
 Admin between centre  70 *  120*  155*  213*
 Spindle hollow  4 ¼ ”  4 ¼ ”  4 ¼ ”  4 ¼ ”
 No. of Spindle speed  5  5  6  6
 Size of Morse taper  5MT  5MT  5MT  5MT
 Lead screw pitch  2PTI  2PTI  2PTI  2PTI
 Power required in H.P.  7.5  10  15  20
 R.P.M. motor approx.  960  960  960  960
 Approx. weight in Kgs.  5000  6000  7200  8000
