| Business Type | Manufacturer, Exporter, Supplier |
| Finishing | Polished |
| Condition | New |
| Usage | Industrial |
| Click to view more | |
Product Details
Specialities
Easy To Operate
Table Size (mm)
800 x 2100/2800/3800
Table Stroke (mm)
1800/2500/3500
No. of T - Slots
5
Width of T - Slots (mm)
20
Distance Between T -Slots (mm)
145
Table Feed Stepless (mm/min)
40-600
Table Rapid Stepless (mm/min)
3000
Table Feed Motor (hp)
2/3/3
Width Between Column (mm)
1200
Maximum Height under Spindle (mm)
1000
Vertical Traverse of cross Rail (mm)
1030
Vertical Feed of Cross Rail (mm/min)
300
Cross Rail Feed Motor (hp)
3
Horizontal Traverse of one Saddle (mm)
1700
Saddle Cross Feed Motor (hp)
3
Saddle Cross Feed Stepless (mm/min)
40-600
Saddle Cross Rapid Stepless (mm/min)
2200
RPM
80-500
Speeds
Variable (2 step)
Motor (hp)
5
Spindle Nose
150-50
Quill Traverse (manual) (mm)
100
Maximum Cutter Die (mm)
125/160
Swivel (manual)
.45''
Overall Size ( L x B x H)
2700/3750/5250 x 3035 x 2900

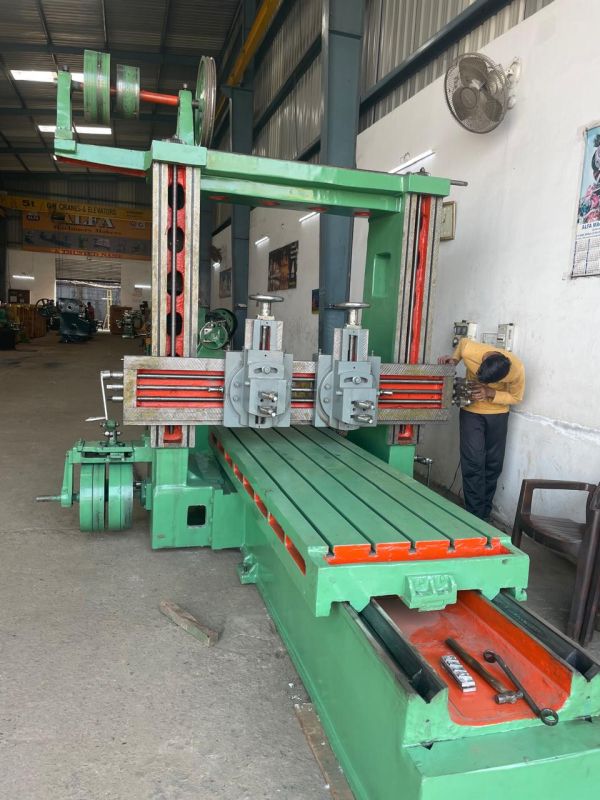

Looking for "Plano Milling Machine" ?
